Widget Set

Introduction

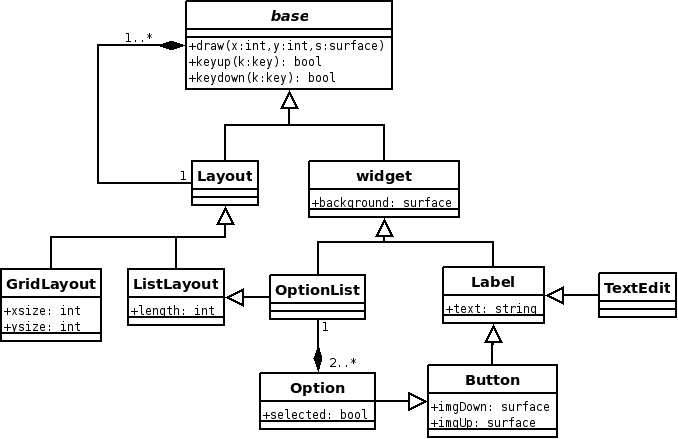

This is a suggested design of the widgets in the code. The old code is several years old, with very little work done on it.

Widgets

Base

Status: complete

This interface defines the draw(), keyup(), and keydown() methods. Every widget will inherit this class. keyup()/keydown() have boolean return types. These methods should return true if they processed the keystroke, and false if they did not.

Widget

Status: complete

A base Widget. This class can have a background image. Any class which will actually draw something to the screen should inherit this class. This class can draw a halo or something similar around itself if it is the active widget.

Label

Status: complete

Can draw a string

TextEdit

Status: complete

Can take input, handles string modification.

Button

Status: Partially complete, need to improve callback mechanism

A label that can activate a callback. It will contain separate images for each state.

Option

Status: Complete

A button that has a state.

OptionList

Status: not started

A list of options. This class verifies that only one Option object is selected at a time.

Layout

Status: complete

An object of this class can contain other objects. It handles focus and widget traversal by the user. This base class will take coordinates to position its children.

GridLayout

Status: Not started

Positions its children in a 2 dimensional grid.

ListLayout

Status: Not started

Positions its children in a horizontal or vertically drawn list

Possible Changes

• It may not be necessary for base and widget to be to separate classes. The only reason is if there is a need to differentiate between widget and layout objects.

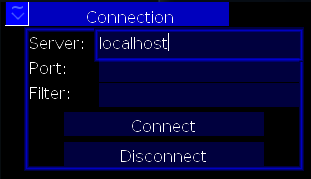

Screen Shot of Current Work

Beware, programmer art shown:

Shown here are two option boxes, three labels, three textboxes, and two buttons. These are contained by a hierarchy of three layout objects.
